Corrugated Metal

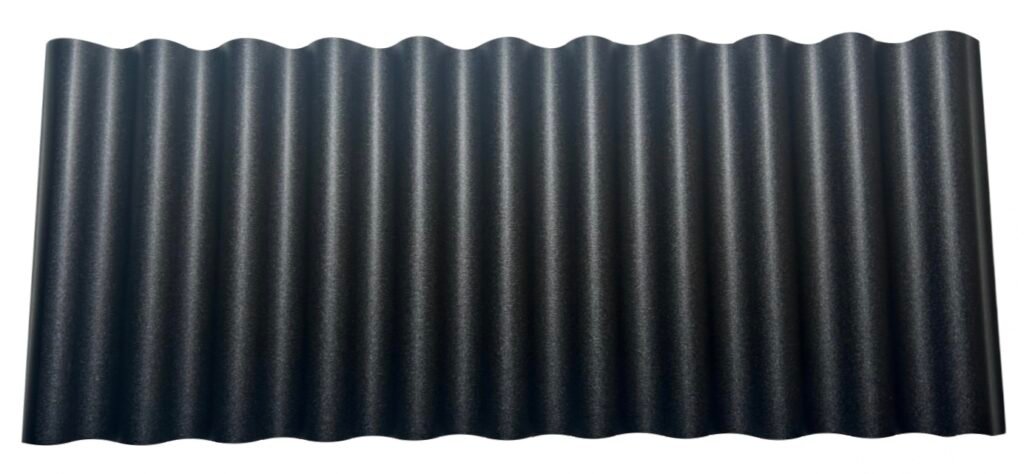

CORRUGATED SHEET METAL PANELS
Rippled metal panels for a unique look.
Product Information
Corrugated Sheet Metal is a highly practical and popular choice for both roofing and siding, offering numerous benefits including strength, cost-effectiveness, sustainability, and aesthetic versatility. The distinctive corrugated pattern not only enhances the material’s structural resilience, providing excellent durability and resistance to severe weather conditions, but also contributes to efficient water runoff. The durability of these panels ensure a long lifespan with minimal maintenance, making it a cost-effective option for various construction projects.
Features and Benefits
LOW MAINTENANCE
Simple to maintain and clean.
EASY INSTALLATION
Quick and easy installations.
PREMIUM DESIGN
Ridges engineered for outstanding strength.
EXTREME WEATHER RESISTANCE
Hail, sleet and windstorm resistant.
MULTI USE

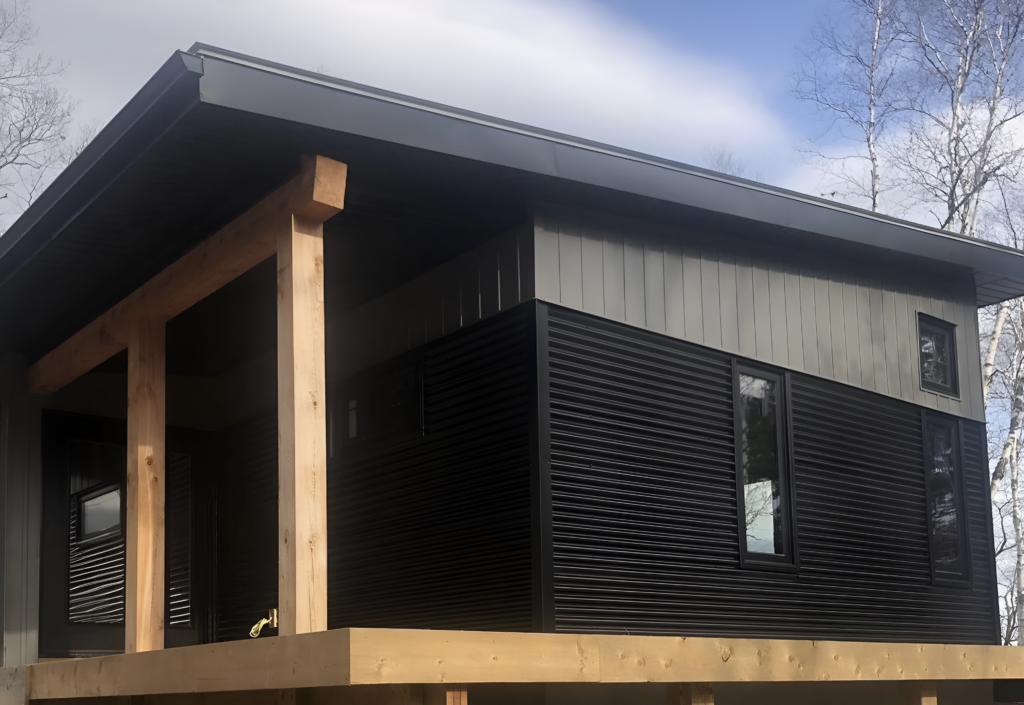

Can be used as siding or cladding and roofing (3/12 minimum pitch).
MADE IN CANADA
Made in Canada with superior craftsmanship and quality.
Technical
- Panels offered in 28 Ga.
- Offered in textured, smooth and woodgrain finish options
- Exposed fasteners
- Minimum 3/12 roof pitch required
- Panel has 27″ W of coverage
- Panels come in lengths of 4′ to 25′
- Paint warranty
- 55% Aluminum-zinc alloy coated steel
| Perspectra Plus Series™ | ASTM | Description |
|---|---|---|
| Film Thickness | ASTM D5796 | The exposed surface shall have a dry film thickness of 25µm ± 3µm (1.0 ± 0.1 mils). The unexposed or reverse side shall have a dry film thickness which will vary in accordance with the customer’s requirements. |
| Film Cure | ASTM D5402 | The baked film shall withstand one hundred and fifty (150) MEK double rubs |
| Film Integrity | 40 Years | During the first forty (40) years of exposure, the paint film shall have no evidence of cracking, flaking, or checking to an extent that is apparent on ordinary outdoor visual observations. |
| Chalking | ASTM D4214 | For the first thirty (30) years, vertical installations will not chalk more than a #8 rating and non-vertical installations will not chalk more than #6 when measured per ASTM D4214, Meth |
| Colour Change / Fade | ASTM D2244 | For the first thirty (30) years, vertical installations will not change colour more than five (5) and non-vertical installations will not change more than seven (7) delta E colour units. Colour measurements are to be made per ASTM D2244 and only on clean surfaces after removing surface deposits and chalk per ASTM D3964. |
| Humidity Resistance | ASTM D2247 | The humidity resistance test shall be conducted at 100% relative humidity at a temperature of 38ºC (100ºF). After 1000 hours of exposure, the surface shall show no field blisters. |
colours
Textured
TEX Black
TEX Dark Graphite
TEX graphite
gloss
Black
Slate grey
dark brown
charcoal
white white
galvalume
Wood Grain
Kona
Suede
Knotty Desert Oak
Drift wood
white oak
